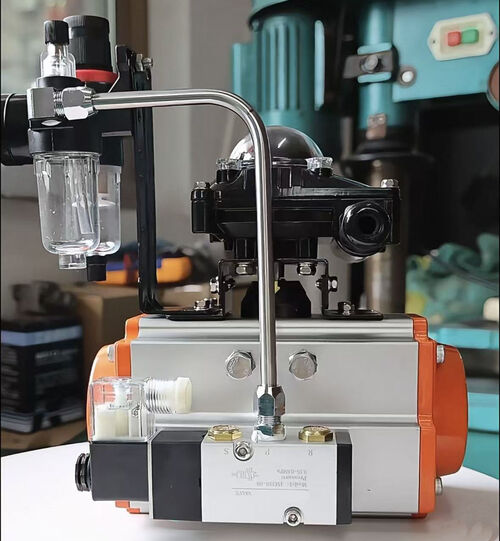

In modern industrial automation upgrade and renovation projects, integrating pneumatic valves into existing programmable logic controllers (PLC) or distributed control systems (DCS) is a common requirement. How to achieve stable electrical and signal matching between pneumatic actuator accessories (such as limit switches, solenoid valves) and the control system without damaging the equipment. Understanding the core functions and signal types of pneumatic actuator accessories Namur Solenoid valve: Electrical switch for controlling the gas path The solenoid valve, as the "remote control switch" of the pneumatic actuator, its core lies in receiving the digital output (DO) signal from the PLC. The coil voltage must be strictly consistent with the power supply voltage of the PLC output module. The two position three way(2/3 way) electromagnetic valve is usually used in single acting spring return actuators, while the two position five way(2/5 way) electromagnetic valve is suitable for double acting actuators.  Limit switch: Provides feedback on the valve position. The limit switch (position indicator) is used to provide the PLC with feedback on the fully open and fully closed status of the valve. The mechanical micro-motion limit switch outputs passive dry contacts (normally open/normally closed contacts). It is directly connected to the digital input (DI) channel of the PLC. Confirm the voltage and current that the switch contacts can withstand, ensure they match the PLC input circuit, and if necessary, use an intermediate relay for electrical isolation. Integration steps and debugging 1.Hardware connection and electrical inspection Compare the wiring diagram of the pneumatic actuator accessories with the PLC system drawing, and confirm the function of each cable one by one. Provide an independent and stable power supply for the accessory group, and install circuit breakers or fuses as short-circuit protection. Avoid sharing the circuit with high-power equipment. 2.PLC software configuration and preliminary testing In the PLC programming software, assign the correct physical addresses and logical variable names to each electromagnetic valve (DO) and limit switch (DI). By using the forced output function of the PLC, each solenoid valve is tested separately to observe whether the actuator operates in the correct direction. Manually rotate the valve, and observe in the PLC monitoring interface whether the signal status of the limit switch (0/1) accurately corresponds to the actual position of the valve (open/closed). 3.Control logic programming and integration testing Write a valve control function block (FB), integrate the commands for opening, closing and stopping, and embed the limit switch feedback as the condition for determining the completion of the action. Under safe conditions, conduct a complete series of automated tests. Observe the response time of the valve and the stability of the position feedback. Common Fault Diagnosis 1.The valve does not operate: Check whether the gas source pressure is within the range of 0.2 - 0.8 MPa; measure whether the voltage across the electromagnetic valve coil is normal; manually test whether the electromagnetic valve is stuck. 2.No feedback from the limit switch: Use a multimeter to measure whether the contacts of the limit switch are conducting or not when the valve is in the fully closed position; check whether the indicator lights of the PLC input points and the address mapping are correct 3.Unstable signal:Check if the wiring is loose; confirm that the signal lines are separately laid from the power lines to avoid electromagnetic interference. Check if the installation position of the mechanical limit switch has shifted due to vibration.

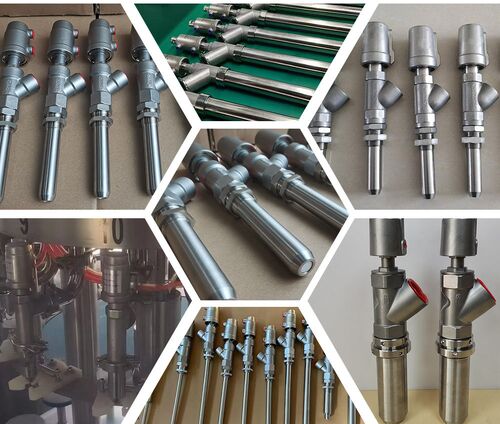

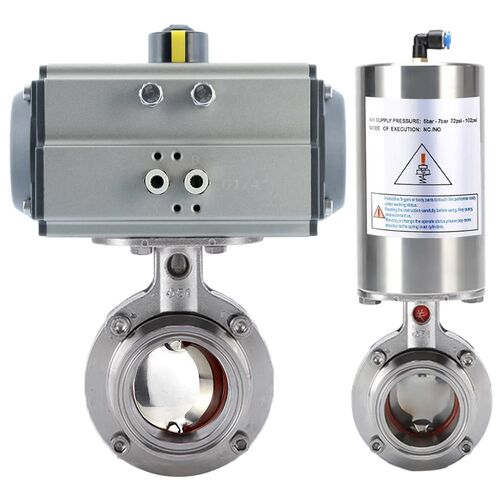

In highly automated modern breweries, the filling line is the final critical link in terms of production capacity and quality. The performance of the Pneumatic filling valve directly determines the speed of the production line, the loss of liquid, and the consistency of the products. For many craft breweries and large brewing enterprises in Norway that strive for efficiency and excellent quality, two core pain points are particularly prominent: Firstly, in high speed filling, can the valve opening and closing respond quickly to match the production line rhythm. Secondly, can an absolute reliable cut off be achieved after filling (zero post-filling leakage) to avoid the leakage of liquid onto the bottle, label, and equipment, while reducing the waste of precious products. The core elements for achieving rapid response 1.Air actuator and gas supply system The rapid response lies in the design of the pneumatic actuator and the quality of the air source. For filling valves, single-acting spring-return type or compact double-acting cylinders are usually selected. At the same time, a stable, dry and pressure-sufficient air source (2-8 bar) is a prerequisite for ensuring a millisecond-level response time. 2.The flow channel design of the valve itself The internal flow channel structure of the valve directly affects the fluid flowability and the opening/closing resistance. The full-diameter or streamlined valve chamber can minimize the fluid resistance, which helps maintain a stable filling flow rate. The lightweight design of the valve core can also reduce the motion inertia, facilitating rapid operation. Overcoming the "leakage" problem Leakage is the ultimate bane of filling accuracy, and its root cause lies in the mating accuracy of the sealing valve seat and the material's tolerance. 1.The precise fit and working principle of the sealed valve seat The realization of the "zero drop leakage" goal lies in the combination of the internal sealed design and the elastic valve seat. When the valve is closed, the valve stem drives the valve core to press against the PTFE valve seat. The slight elastic deformation of the PTFE material under force can perfectly fill the microscopic unevenness between the metal valve core and the valve seat, achieving a full-area tight fit. This fundamentally eliminates the possibility of leakage from the valve stem. 2.As the base material for all metal components in contact with the fluid, the stainless steel valve body provides the necessary strength and corrosion resistance. It can withstand the long-term erosion caused by the weak acidic components in beer and the acid and alkali solutions used in CIP cleaning, thereby avoiding the risk of seal surface damage or contamination due to metal corrosion. 3.Long life: The all-metal structure is designed for high-frequency industrial environments, with a cycle life of up to several million times. 4.By adding the electrical control signal of the solenoid valve and connecting it to the PLC system, automatic and intelligent control can be achieved. On the filling line of an automated winery, choosing an efficient pneumatic actuator, a precise internal sealing design, and a filling valve made of PTFE and stainless steel materials can effectively enhance the operational efficiency of the filling line, improve product quality, and reduce the overall operating costs.

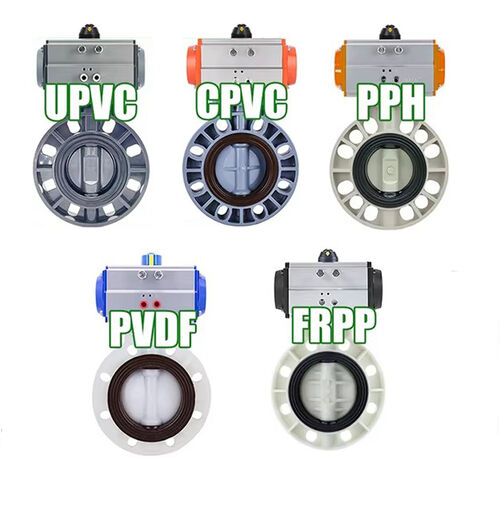

In the daily operation of chemical plants, corrosion is one of the most severe challenges faced by process pipelines and valves. Metal butterfly valves, especially those made of standard carbon steel or stainless steel, may suffer from pitting, intergranular corrosion or stress corrosion cracking when handling specific acids, alkalis, halides or organic solvents. This often leads to premature valve failure, medium leakage and unplanned shutdowns. This not only brings safety hazards and environmental pollution risks, but also significantly increases maintenance and replacement costs.   Why Do Metal Valves Fail in Specific Chemical Environments The corrosion failure of metal valves usually does not result from insufficient overall strength, but is caused by local electrochemical reactions. 1. In media containing halogen ions such as chloride and bromide ions, the passive film on the surface of stainless steel is locally damaged, forming micro-batteries, which leads to intense and deep corrosion of the metal in small areas, eventually resulting in perforation. 2. Within a specific temperature range, carbon in stainless steel combines with chromium at the grain boundaries to form chromium carbide, resulting in a chromium deficiency in the area near the grain boundaries and thus loss of corrosion resistance, along with a significant decrease in material strength. 3. Under the combined effect of tensile stress and specific corrosive media (such as chloride ions, sulfides), the metal will undergo brittle fracture. Such failure is often sudden and extremely harmful. These failure modes indicate that choosing materials that are fundamentally compatible with the chemical properties of the medium is the key to ensuring long term stable operation.   Systematic Selection Path for Engineered Plastic Valve Bodies The plastic valve body has non-metallic and non-electrochemical active properties. Compared to metal valves which rely on surface passivation films (such as the chromium oxide layer of stainless steel), engineering plastics (such as PVDF, CPVC, and PPH,UPVC) exhibit inherent stability towards a wide range of chemical media through their high molecular chain structure. The core advantage lies in: · The high molecular structure of engineering plastics has excellent tolerance to numerous inorganic acids, bases and salt solutions, fundamentally avoiding electrochemical corrosion. · The amorphous or semi-crystalline structure of plastic valves eliminates the specific pitting and intergranular corrosion mechanisms found in metals. · Low price, light weight, easy installation, and not prone to scaling. Selection parameters CPVC UPVC FRPP/PPH PVDF Temperature Resistance -40°C ~ +95°C -10°C ~ +60°C -20°C ~ +90°C -40°C ~ +140°C Chemical Resistance Good tolerance to acids, bases and salts, but not resistant to some aromatic hydrocarbons and chlorinated solvents Good tolerance to acids, bases and salts, but not resistant to some aromatic hydrocarbons and chlorinated solvents Excellent for most inorganic acids and alkaline solutions, but not resistant to strong oxidizing acids and some organic solvents Excellent chemical resistance, especially against halogens, strong oxidizing acids and solvents Mechanical Strength High rigidity, high tensile strength High rigidity, with increased brittleness at low temperatures Good rigidity and impact resistance High mechanical strength and toughness, with excellent creep resistance Pressure Rating 10bar 6-10bar 10bar 10bar The core value of the plastic pneumatic butterfly valve lies in that it solves the fundamental problem of medium compatibility through material science, and at the same time ensures mechanical and control reliability through standardized industrial design.The core value of the plastic pneumatic butterfly valve lies in that it solves the fundamental problem of medium compatibility through material science, and ensures mechanical and control reliability through standardized industrial design, achieving higher process reliability, lower total life cycle cost, and better risk control.

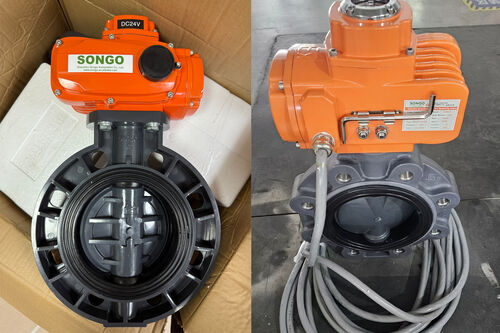

Market Background The North American aquaculture industry is rapidly shifting toward automation and intelligent control. Recirculating Aquaculture Systems (RAS) demand continuous operation for aeration, water flow, and water quality management. In such applications, valves serve as critical end devices that must not only resist seawater corrosion but also provide fail-safe mechanisms during power interruptions to prevent water loss or stock mortality. The U.S. market places particular emphasis on reliability, ease of maintenance, and technical specifications such as response time, ingress protection, and manual override capability. Customer and Application Scenario The customer is a large-scale aquaculture farm in the United States operating multiple indoor RAS tanks for high-value fish species. Their existing valve system relied on manual operation, which led to delayed responses and could not be integrated with a central PLC control system. The customer required 200 sets of Motorized UPVC butterfly valve.pdf to upgrade their water recirculation piping. The key requirement was fail-safe functionality—spring-return actuators (fail close) to ensure automatic valve closure upon power loss, preventing backflow or overflow. Our Solution Based on the customer’s requirements for corrosion resistance, control integration, fail-safe operation, and harsh-environment durability, we provided the following configuration: https://www.songovalve.com/videos-53512762-upvc-wafer-motorized-actuator-butterfly-valve-3-inch-220vac-ip65-ip68-10bar-waterproof.html Body and Flow Path Materials: UPVC body with 304 stainless steel disc. The UPVC body offers excellent resistance to seawater and chemicals, while the 304 stainless steel disc provides corrosion resistance and withstands minor abrasion from suspended solids. Actuator Type: Spring-return (fail close) electric actuator, 24VDC power supply. The spring-return mechanism ensures automatic closure when power is interrupted, requiring no external control signal. Torque and Cycle Time: Actuator output torque ≥150 N·m, sufficient for reliable operation of DN150 butterfly valves under maximum differential pressure. Opening time ≤30 seconds, matching PLC control cycle requirements. Ingress Protection: IP67 rating, suitable for periodic washdowns, high humidity, and condensation typical in aquaculture environments. Control and Maintenance Interface: Supports timer and PLC programming for automated open/close control. A manual override is included for on-site maintenance operations.Electric Actuator Instruction.pdf Key technical parameters of the solution are summarized below: Parameter Specification Body Material UPVC Disc Material 304 Stainless Steel Nominal Pressure PN10 (shell strength test 1.5 MPa) Seal Test (Fluid) 1.1 MPa Actuator Type Spring-return (fail close) with battery Reset  Automatically closes the valve if power is cut. Power Supply 24VDC Output Torque ≥150 N·m Opening Time ≤30 seconds Protection Class IP67 Control PLC / timer, with manual override Customer Feedback After project delivery, the customer’s technical manager provided the following feedback: “The valves were installed smoothly and communicated stably with our existing PLC system. What impressed us most was the fail-safe test—all actuators completed spring-return closure within 2 seconds without any sticking. The IP67 rating performed well under daily washdown conditions, with no water ingress into actuators or stem corrosion observed.” Summary This case study illustrates how precise configuration of motorized UPVC butterfly valves—particularly the combination of fail-close actuators and high ingress protection—addresses critical concerns in North American aquaculture automation: power failure safety, environmental durability, and system integration. Based on technical data from the product PDF, including seal test pressure, shell strength, and material selection, this solution offers verifiable corrosion resistance, operational reliability, and long-term maintenance benefits—well suited for applications demanding continuous operation and fail-safe performance.

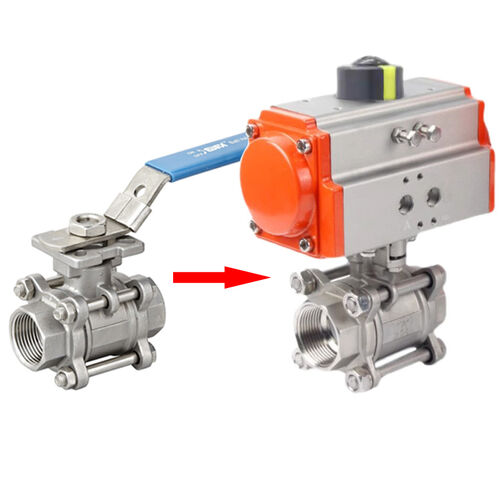

Some time ago, our Mexican client suddenly contacted us, asking us to come up with a solution to enhance production efficiency and process stability, and to achieve automated control. Considering the client's requirements and the on site situation, we upgraded 1000 manual valves to pneumatic actuators for control. This improved the system's response speed and enabled precise flow control. However, the successful upgrade was not simply a replacement of the actuators; it required a comprehensive technical assessment of interface compatibility, operational adaptability, and long term reliability.  First, it is necessary to understand the engineering value of the upgrade Item 1000pcs Manual Valve 1000pcs Pneumatic Valve Initial cost $20000 $4000 labor cost $40000/year $4000/year Cost of wasted medium $2000/year $0 5 year total cost $230000 60000 Manual valves have limitations in emergency shut-off, remote operation, or processes that require frequent adjustment. The on-site intervention by operators not only causes delays but also poses safety risks on high-temperature or inaccessible pipelines. The introduction of pneumatic actuators aims to transform the valve into a terminal component that can be directly driven by the control system (such as PLC or DCS), enabling rapid, repeatable, and remotely monitored opening and closing actions. This is the foundation for achieving advanced process automation and energy management.  Parameters required for matching of valves with pneumatic actuators: 1. Torque matching of the actuator and the valve When selecting a pneumatic actuator, its output torque must be greater than the operating torque required by the valve under the maximum pressure difference (PN16) and specific operating conditions (such as 200°C steam). Valve torque requirements: They are influenced by the valve core size, the friction coefficient of the sealing material (such as PTFE), the system working pressure, and the characteristics of the medium. Thermal expansion and contraction in steam conditions may increase the opening and closing torque. Actuator selection: Based on calculations or torque data provided by the valve manufacturer, an actuator with an appropriate safety margin (usually 1.5-2 times) should be selected. Insufficient torque will cause the valve to fail to close tightly or open fully, while over-selecting will result in cost waste and increased energy consumption. 2.Standardized interfaces and mechanical connections Installation brackets and couplings: Between the actuator and the valve, they are usually connected through installation brackets and couplings that comply with ISO 5211 standards. It is necessary to confirm the compatibility and reliability of the connection between the valve stem size and the output shaft of the actuator. Strong mechanical connection is necessary to ensure the effective transmission of torque and prevent vibration and loosening. 3.Selecting the appropriate pneumatic actuator based on operating conditions Double acting pneumatic actuator: When the air source pressure is lost, the actuator will remain at the position it was in when the pressure was lost. Single acting pneumatic actuator: During normal operation, compressed air overcomes the spring force to drive the valve; when the air source is lost, the spring energy is released, driving the valve to the preset safe position (usually closed or open). 4.System Integration Considerations: Control Signals and Auxiliary Components Control Accessories: Solenoid valve, limit switch, and air source treatment unit (filter, pressure reducer, oil mist generator) are the core components that form a reliable pneumatic circuit. Automation Control: The precise control of the pipeline system's flow is achieved through electro-pneumatic positioner and PLC control signals, enabling full automation control and remote status monitoring.  Upgrading the manual valves to pneumatic control ones is a comprehensive system project aimed at enhancing controllability, safety, efficiency, and reducing costs. Through torque verification, interface review, condition assessment, and system integration planning, it promotes process optimization and intelligent management.

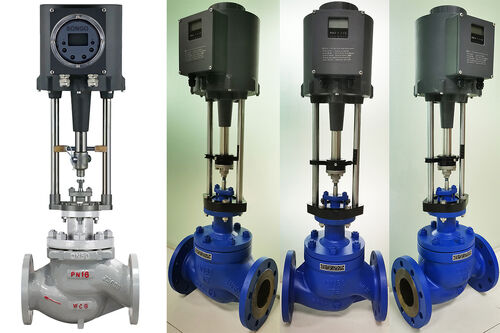

In May 2023, a large chemical enterprise located in Russia was confronted with severe operational challenges regarding its reaction tanks. The medium was the waste heat from a thermal power plant, with a temperature of approximately 250℃ and a pressure of 1.6 MPa. The control valves originally in use frequently malfunctioned, resulting in problems such as burned-out actuators, damaged control modules, and broken reduction gears, which seriously affected the long-term operation of the equipment. Moreover, each shutdown and maintenance operation caused direct economic losses of up to 100,000 RMB.  The customer raised some issues and requested solutions. Immediately, our company dispatched two engineers to the customer's company in Russia. After the on-site investigation and technical communication by our engineers, we identified that the core problem was that the electric control valve originally selected for the local Russian market could not balance the pressure difference between the inlet and outlet under this working condition. This led to excessive load on the actuator during operation, causing the reduction gear to be overburdened and being damaged several times, as well as damage to the motor and module. Additionally, the particles and impurities in the medium severely eroded the sealing surface of the valve core.  In response to this harsh working condition, we recommend replacing the electric single-seat regulating valve with an electric sleeve regulating valve that we have independently developed. This valve is specifically designed for high-pressure difference scenarios. The balanced structure of the valve core in the sleeve valve can significantly counteract the unbalanced force generated when steam passes through, reducing the load on the electric actuator and facilitating the long-term stable operation of the regulating valve. After consulting with the users, we made a decisive decision to provide the customers with quotations, transportation plans, and after-sales guidance plans on site.  Because the electric sleeve regulating valve possesses these advantages:1). Balanced valve core structure, allowing for large pressure difference2). Sleeve guiding structure, with a large guiding area3). Separation design of the sealing surface and the throttling surface4). Large flow coefficient, strong flow capacity5). Wide regulating range, precise flow characteristics6). Low noise, excellent anti-erosion performance7). Adjustable leakage level, zero leakage for soft seals8). Flexible configuration of the actuator, energy saving and cost reduction9). High degree of intelligence, simple wiring10). Easy maintenance, strong adaptability11). Various sealing forms, suitable for special working conditions  Since its commissioning in August 2023:Operational stability: It has been running continuously for over two years without any faults, far exceeding the 8 months of the local valves in Russia.Economic benefits: The product price is 20% lower than that of the local brands in Russia, and the spare parts procurement cycle has been shortened from 30 days to 5 days.Maintenance cost: Due to the use of wear-resistant design, the lifespan of the valve core has been extended by 8 times.  Customer review: "Not only did it solve our production problems and prevent the high cost of maintenance shutdowns, but it also made us believe in the strength of Chinese manufacturing technology."  The successful application of this project not only verified SONGO's profound accumulation in the field of high-end and demanding control valves, but also provided a highly valuable reference solution for similar working conditions in the same industry. Application scenarios Reasons For situations with large pressure differences Balanced valve core structure allows for large pressure differences For piping systems with high flow rates High rated flow coefficient, strong flow capacity For places requiring low noise 10 dB lower noise than ordinary regulating valves For processes requiring precise regulation Large adjustable ratio, precise flow characteristics For steam and gas media Sleeve structure is suitable for compressible fluids For occasions where single-seat and double-seat valves are used Combines the advantages of both, more adaptable Comparison with Electric Single-acting Control Valves Comparison items Electric sleeve control valve Electric single-seat control valve Applicable pressure difference For occasions with large pressure differences For occasions with small pressure difference Valve core structure Balanced type, with small unbalanced force Unbalanced type, with large unbalanced force Leakage level Hard seal level I-IV, soft seal level VI Hard-sealed level IV, soft-sealed level VI Actuating mechanism Can be equipped with a smaller actuator Requires a larger actuator Stability Good, less prone to vibration Better Maintainability  Sleeve interchangeable, convenient for maintenance The replacement of the valve core and valve seat is rather complicated.
